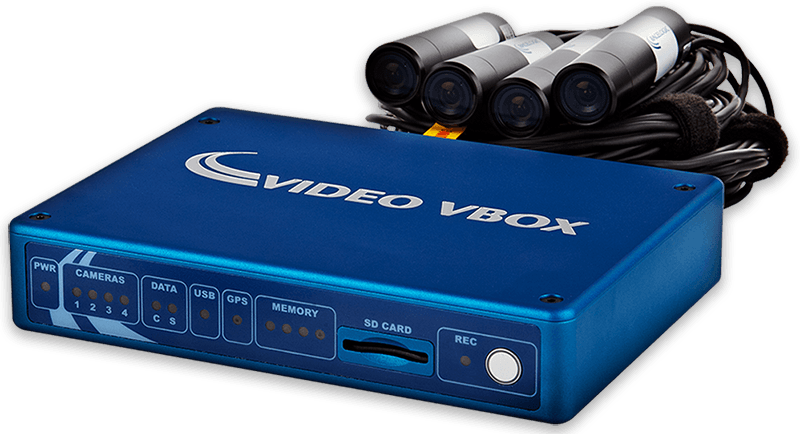

Video VBOX Pro

Four camera video data logger aimed primarily at motorsport professionals and driving instructors.

  • Up to 4 cameras
  • DVD video quality
  • Real-time graphic overlay
  • Up to 32 CAN channels
  • Robust aluminum enclosure

Features

4 Camera Inputs

Up to 4 camera inputs with configurable picture in picture, waterproof (IP67)

CAN Bus

Log up to 32 channels of vehicle CAN data, such as throttle angle, RPM, and brake pressure.

DVD Video Quality

720 x 480 at 30 frames per second (NTSC)

Rugged Enclosure

The robust and light aluminum housing makes it suitable for a variety of applications.

Internal battery

Keeps logging even when power lost for up to 10 s

High Accuracy Data Acquisition

10 Hz or 20 Hz GPS engines provides parameters such as circuit position, lap timing and speed -accurate to ±0.1 km/h

Video VBOX Pro

Predictive Lap Timing

Predictive Lap Timing gives you an invaluable insight into how your current lap time compares with your fastest lap time.

To achieve our unrivalled accuracy, we compare two different laps using GPS position rather than distance, 10 or 20 times a second. This means our lap time stays accurate, even if the driver takes a different line each lap.

The OLED display is available as an accessory or as part of a Video VBOX package.

Real-time Graphic Overlay

RACELOGIC's range of in-car camera systems are fully synchronized and embed a real-time graphical overlay on your video, allowing you to instantly analyze your performance and pinpoint areas for improvement.

A library of graphic overlay files is available for Video VBOX customers to use.

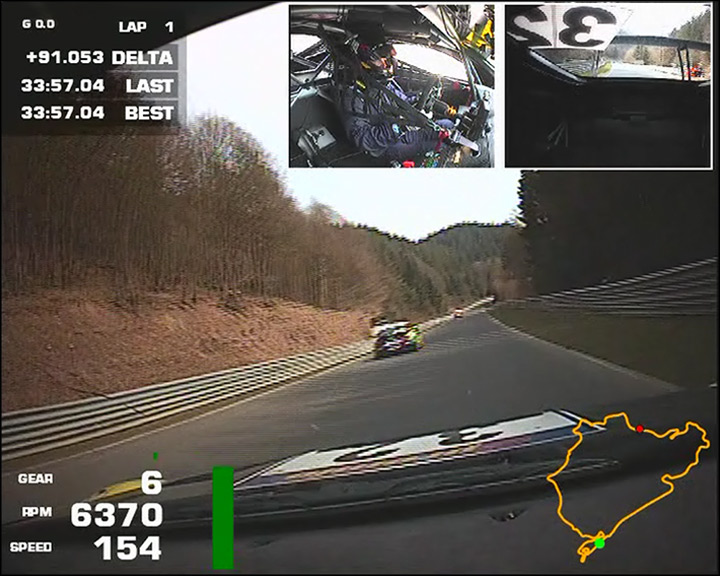

Scene elements:

Logo - Gear, RPM & Speed values - best & last lap time - delta time - lap counter - track map - two picture-in-picture videos

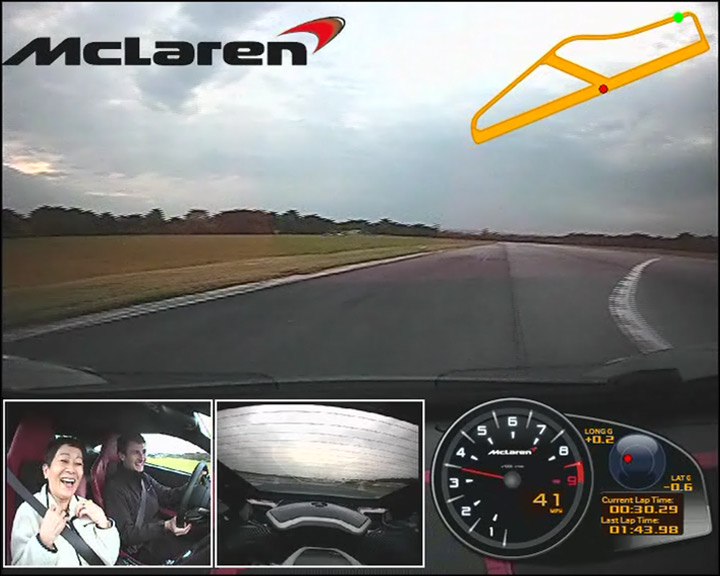

Scene elements:

Logo - Custom gauge - lat./long accel - current & last lap time - lap counter - text - track map - picture-in-picture video

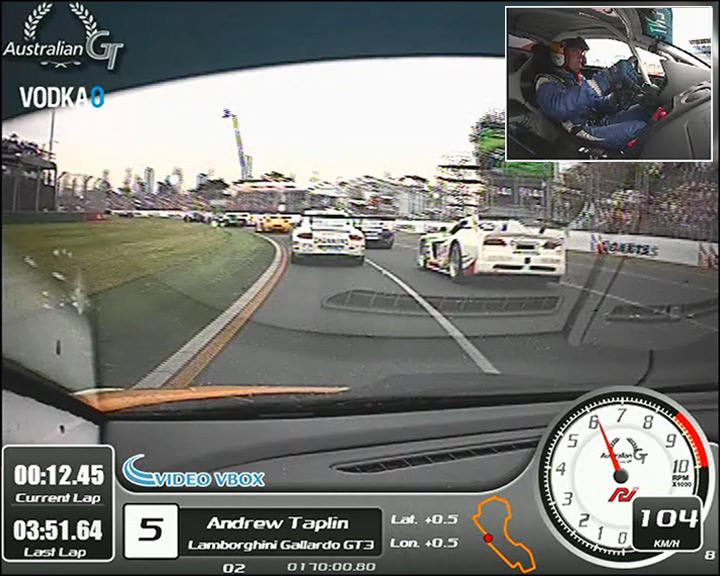

Scene elements:

Logo - Custom gauge - lap time - text - track map - picture-in-picture video

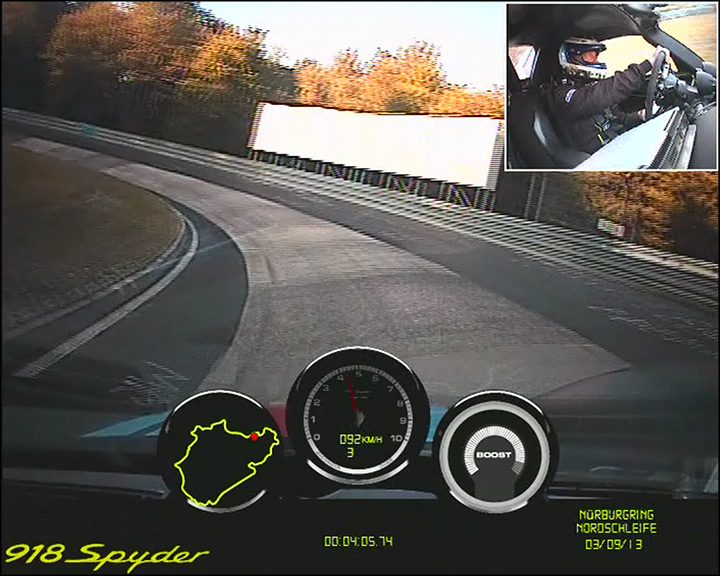

Scene elements:

Logo - Custom gauge - g-force - current & last lap time - track map - two picture-in-picture videos

Powerful Analysis Software

Circuit Tools analysis software is aimed at drivers and is quick and simple to use. The software is designed to automate many tasks and present a driver with the information required to improve lap times.

Circuit Tools is now compatible with Windows, macOS and iOS devices.

Would you like to try Circuit Tools at home?
Watch this video and download the accompanying video and data files for replay in Circuit Tools.

Multiple Sessions

Compare laps from different days, drivers or sessions

Lap Times

Clear lap and section times

Logged Channels

GPS and other key parameters

Data Synchronized 1080p Video

Real-time overlay for rapid analysis

Track Position

Shows your position on track and auto-detects the circuit used

Delta Time Trace

Pin-point areas for improvement

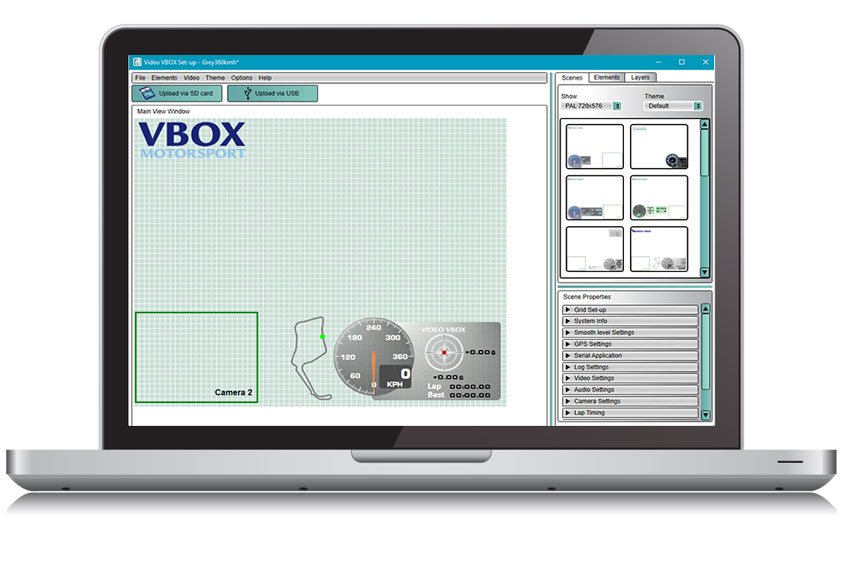

Intuitive Setup Software

Video VBOX Setup software allows you to create scenes from scratch or edit the default scenes provided, adding bar graphs, rotary gauges, text elements, pictures and track maps.

Logos and Images

PNG, GIF, JPEG image import

Track Maps

A large track map database. Scene design also possible with auto-track map.

Picture-in-picture camera

Default Scenes

Library of default scenes to get you going in seconds

Scene Properties

Change parameters such as log settings, video quality and CAN inputs

Total gauge design freedom

Gauges, text and bar graphs can be associated with any logged parameter

Add-ons and Accessories

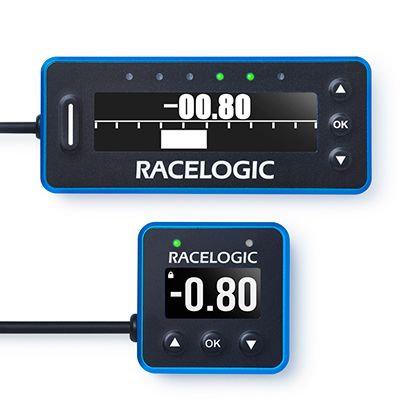

OLED Displays

RLVBDSP05-L/ RLVBDSP06
The perfect addition to any Video VBOX setup allowing you to view lap times as you drive. The OLED display includes our revolutionary predictive lap timing function.

Roll Cage Mounts

RLACS286
Solid aluminum body connected to a curved mounting plate. Bolted to the bar via supplied jubilee or worm drive hose clips.

Preview Monitor

RLACS217
The 4.3" camera preview monitor is ideal for aligning camera angles and checking the output from the in-car cameras.

Micro Input Module

RLVBMICIN01L
Should you wish to log vehicle signals from a car without a CAN Bus, the Micro Input Module allows you to record one frequency (RPM) and four analogue signals.

CAN Bus Interface

RLACS182-L
For vehicles requiring a bare-wire CAN Bus connection, this neat item encloses the CAN-hi and CAN-lo cables without breaking into them, inductively reading the signals.

Battery Pack

RLACS112L
The Li-Ion battery gives approximately five hours of power from a full charge.

Spare Cameras

RLACS140
Spare high-res cameras are available as accessories, which is convenient if the Video VBOX is used in more than one vehicle.

Start/Stop Logging Switch

RLACS164-L/ RLACS164-LUP
If you need manual logging, the start/stop logging switch allows you to remotely operate the Video VBOX. Also available with a remote USB logging socket and OLED Display connection.

Cables

RLCAB072 / RLACS139 / RLCAB109 ...
Various cables for remote USB logging, camera extension, OBDII or CAN connection.
