Free HD2 Scene Files

There are two ways to create a graphical overlay file (scene file) for your HD2 video footage.

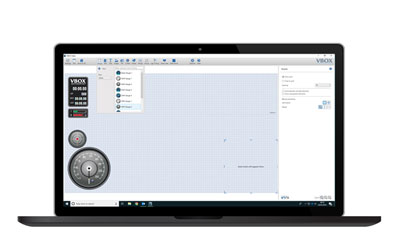

1) VBOX Video HD2 Setup Software

VBOX Video HD2 Setup Software allows you to adjust settings and configure the graphic overlays you wish to use on your videos. To help get you started, a range of graphics are pre-loaded into the software and a library of manufacturer specific scene files are available to download below.

2) Online Scene Wizard

If you would like to create a simplistic scene without using HD2 Setup Software, you can use our Online Scene Wizard to create it. Simply  choose from a selection of template designs containing a number of standard channels. You can select specific car parameters from our CAN database and also add your own logo.

Video VBOX HD2 Scene Library

Continuously expanding library of manufacturer specific graphic overlay files (scenes).

The CAN database is built into the HD2 setup software, allowing you to easily assign CAN parameters to elements within each scene. If your model is not listed in the database we are afraid we do not have the relevant CAN channels to support that particular scene

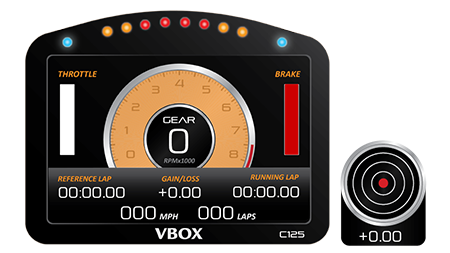

MoTeC C125

CAN parameters (C125 CAN file): Engine Speed, Brake Pressure, Throttle Position, Gear
Speed: MPH

Filename Size
MoTeC C125.VVHSN 1.19 MB

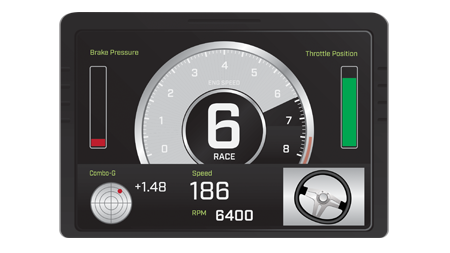

MoTeC C187

CAN parameters (C187 CAN file): Engine Speed, Brake Pressure, Throttle Position, Steering Angle
Speed: MPH

Filename Size
Industry Demi.otf 38.88 KB
MoTeC-C187.VVHSN 5.97 MB

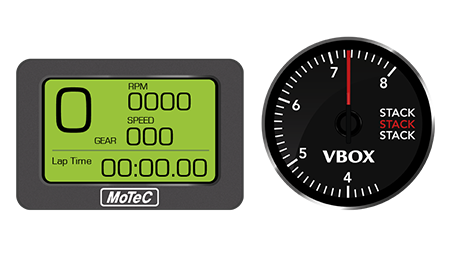

MoTeC D153 + STACK RPM Dial

CAN parameters (D153 CAN file): Engine Speed
Speed: MPH

Filename Size
MoTeC-D153-StackDial-RPM.VVHSN 2.3 MB

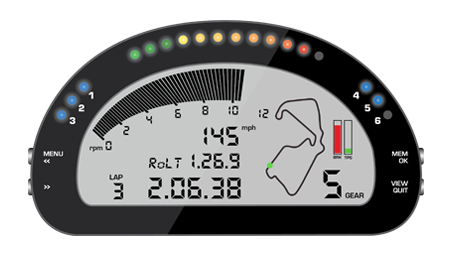

AiM MXL2

CAN parameters: Engine Speed, Brake Pressure, Throttle Position
Speed: MPH

Filename Size
AiM-MXL2-6kRPM.VVHSN 671.11 KB
AiM-MXL2-9kRPM.VVHSN 614.91 KB
AiM-MXL2-12kRPM.VVHSN 673.98 KB

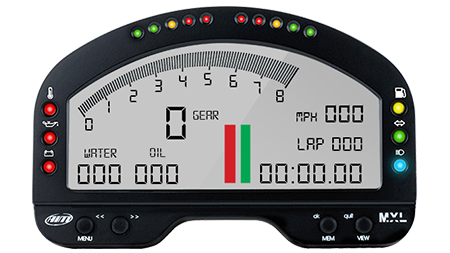

AiM MXL Pro05

CAN parameters: Engine Speed, Brake Pressure, Throttle Position, Water & Oil Temperature
Speed: MPH

Filename Size
AIM-MXL-Pro05.VVHSN 1.57 MB

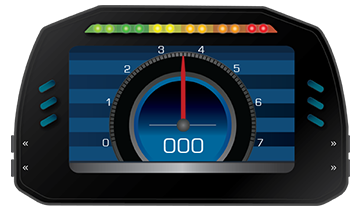

AiM MXS Strada

CAN parameters: Engine Speed


Filename Size
AiM-MXS-Strada.VVHSN 892.04 KB

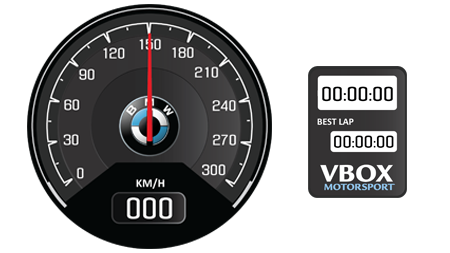

BMW M3

Filename Size
BMW-M3.VVHSN 1.99 MB
Enigmatic.TTF 77.69 KB

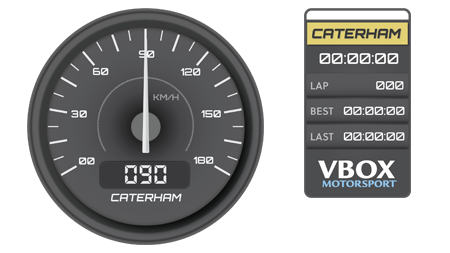

Caterham 7

Filename Size
Caterham-7.VVHSN 1.96 MB
Orbitron-Bold.OTF 19.91 KB

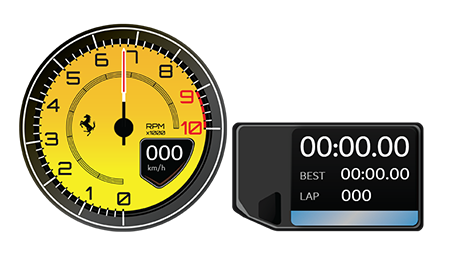

Ferrari 458

Filename Size
Ferrari-458-Challenge.VVHSN 1.65 MB
ORBITRON-MEDIUM.OTF 18.8 KB

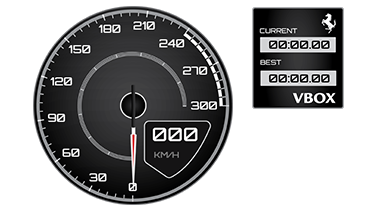

Ferrari F12

Filename Size
Ferrari-F12.VVHSN 3.04 MB
orbitron-bold.otf 19.91 KB

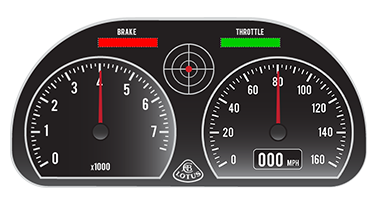

Lotus Elise S2

CAN parameters: Engine Speed, Brake Pressure, Throttle Position

Filename Size
Lotus-Elise-S2.VVHSN 1.05 MB

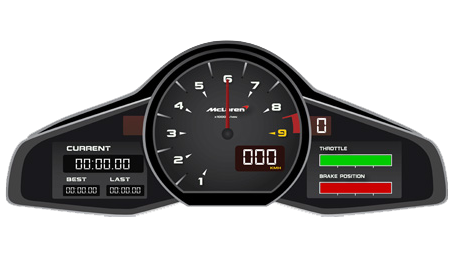

McLaren MP12-4C

CAN parameters: Engine Speed, Gear, Throttle Position

Filename Size
DS-DIGI.TTF 23.88 KB
McLaren-MP4-12C.VVHSN 1.53 MB

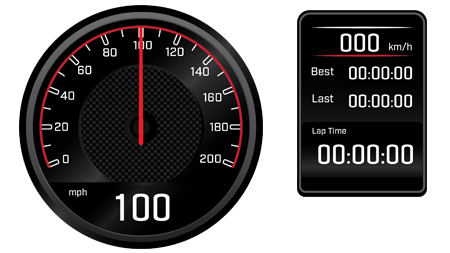

Mercedes-AMG

Filename Size
Enigmatic.TTF 77.69 KB
Mercedes-AMG.VVHSN 1.89 MB
MercedesAMG-Default.VVHSN 1.89 MB

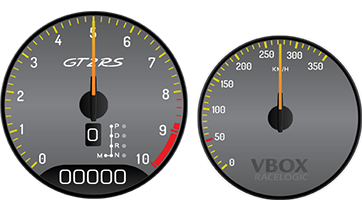

Porsche GT2 RS

CAN parameters: Engine Speed, Gear

Filename Size
Porsche-GT2-RS.VVHSN 2.71 MB

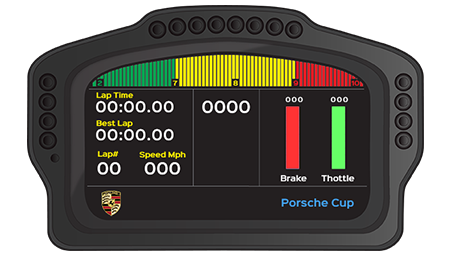

Porsche 991.2 Cup Car

CAN parameters: Engine Speed, Gear, Throttle Pressure, Brake Pressure

Filename Size
Porsche-991.2-Cup-Car.VVHSN 361.83 KB

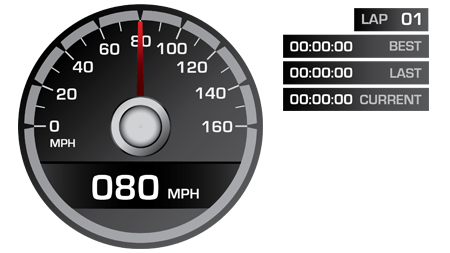

Mustang GT500

Filename Size
Eurostile-Bold.TTF 36.95 KB
Mustang-GT500.VVHSN 4.8 MB

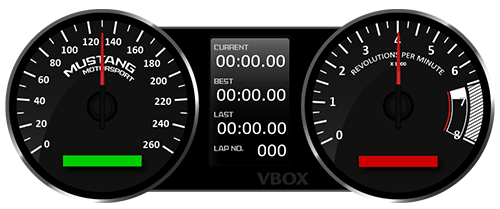

Mustang GT 2015-19

CAN parameters: Engine Speed, Brake Pressure

Filename Size
Mustang-GT-2015-19.VVHSN 3.41 MB

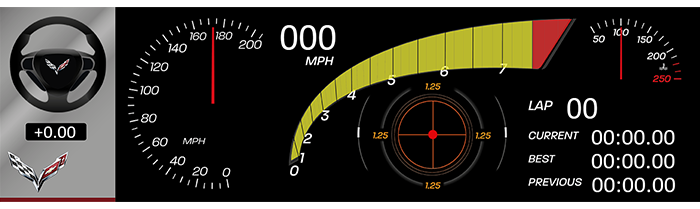

Corvette C7

CAN parameters: Engine Speed, Gear, Steering Angle, Engine Temperature

Filename Size
Corvette-C7.VVHSN 11.28 MB

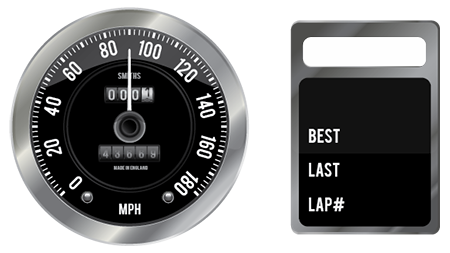

Aston Martin DB GT4

Filename Size
Aston-DB-GT4 .VVHSN 2.1 MB

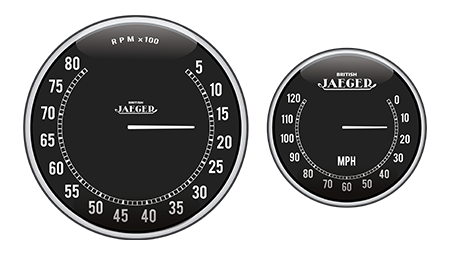

Austin 7 Special

Filename Size
Austin-7-Special.VVHSN 817.44 KB

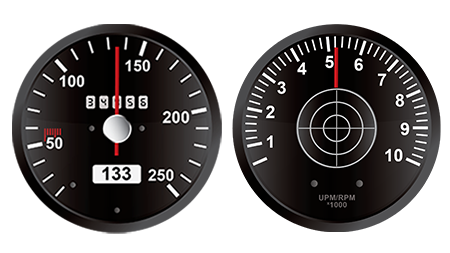

Porsche 911 Classic

CAN parameters: Engine Speed
Speed: KM/h

Filename Size
Porsche-911-Classic.VVHSN 2.83 MB

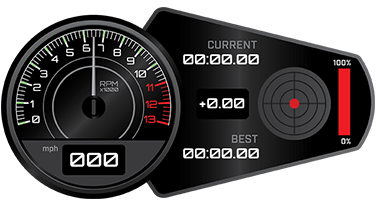

Kawasaki Ninja ZX-10

CAN parameters: Engine Speed, Brake Pressure

Filename Size
Kawasaki-Ninja-ZX-10.VVHSN 1.68 MB
orbitron-bold.otf 19.91 KB

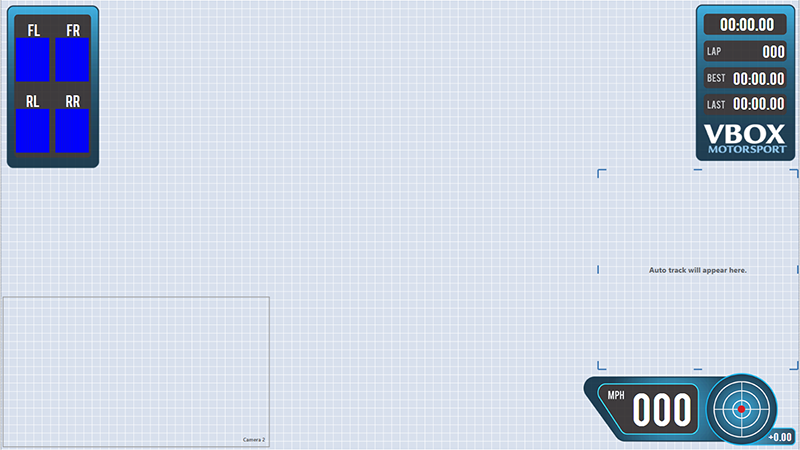

Tyre Temperature Monitoring 1

To calibrate your Tyre Temperature Monitoring system you will also need to download the calibration scene files for the front and rear of the vehicle.

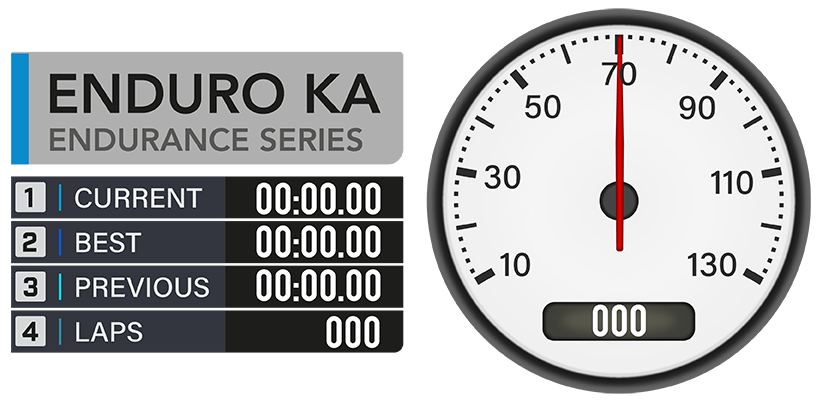

EnduroKA

Filename Size
EnduroKA-Default.PNG 254.25 KB
EnduroKA-Default.VVHSN 1.73 MB

Looking for scene files for Video VBOX Lite, Video VBOX Pro or Video VBOX Waterproof?
