VBOX HD Lite

- DISCONTINUED -

Miniature video data logging system for Motorsport that records 1080p HD video with fully synchronised GNSS data.

  • Compact, water-resistant and aerodynamic
  • 1920 x 1080p 30 fps video
  • 10 Hz GNSS data recording
  • 8 CAN input channels
  • Logs to micro SD card

Features

Two Camera Inputs

Wide Dynamic Range

Enables the camera to display greater image detail and balanced lighting in high contrast conditions, where both bright and dark areas are present in the frame.

CAN Bus Input

CAN Bus Input

Log vehicle CAN data to up to 8 channels such as throttle angle, RPM, and brake pressure
HD Video

Predictive Lap Timing

Output to the RACELOGIC predictive lap timing display allows you to have valuable feedback whilst you are driving.

Graphic Overlay

Auto-Video Rotation

Automatically flips the video depending on mounting orientation

HDMI Option

Live Preview for Camera Alignment

Our free Preview app allows you to check the alignment of your cameras on your phone.
Power Backup

Record When Moving

VBOX HD Lite will automatically start to record video when the car is moving (user configurable), which means your microSD card doesn't fill up with static video.

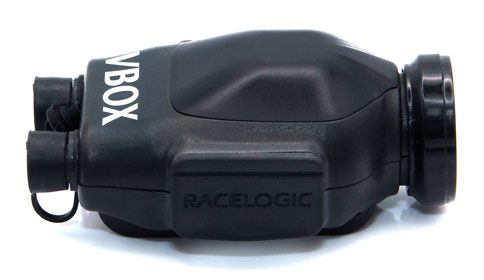

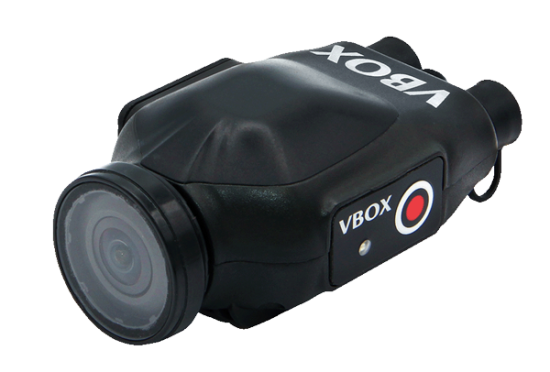

Built to Race

The VBOX HD Lite is a custom designed all-in-one camera for Motorsport. If you have ever tried to use other small sports cameras, you will know that they are not ideally suited for the environment, and you can end up losing valuable footage.

VBOX HD Lite has been designed to have a minimum aerodynamic impact, and the power source is separate from the camera, allowing it to be permanently powered.

The system will start to record video and data when the car is moving, saving you memory space and time.

Data (GPS and CAN) is recorded alongside the video, allowing analysis in our easy-to-use Circuit Tools software, which is one of the best ways to improve your lap times.

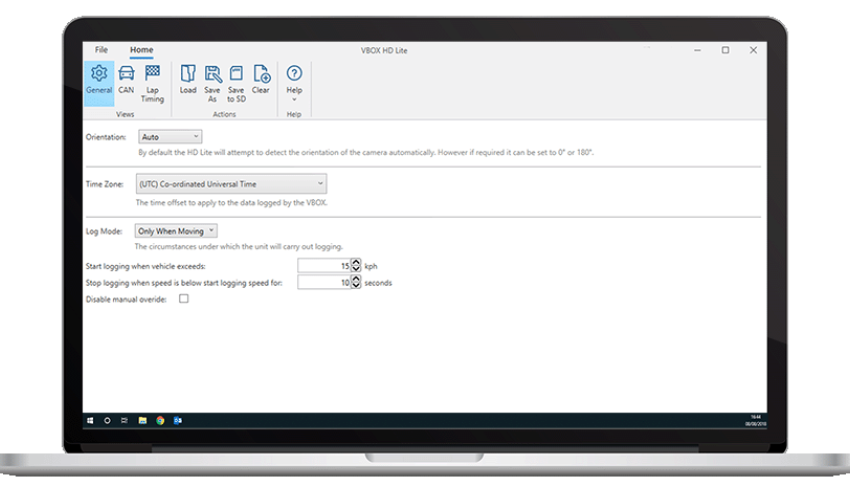

Intuitive Setup Software (Windows)

VBOX HD Lite setup software is intuitive and easy to use, allows you to configure the operation of the VBOX, including log strategy and CAN configuration.

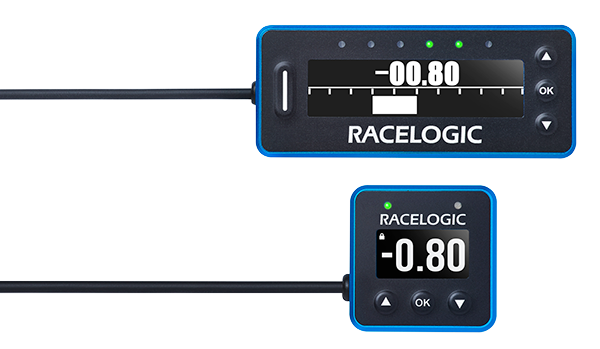

Predictive Lap Timing

Predictive Lap Timing gives you an invaluable insight into how your current lap time compares with your fastest lap time.

To achieve our unrivalled accuracy, we compare two different laps using GPS position rather than distance, 10 or 20 times a second. This means our lap time stays accurate, even if the driver takes a different line each lap.

The OLED display is available as an accessory or as part of a Video VBOX package.

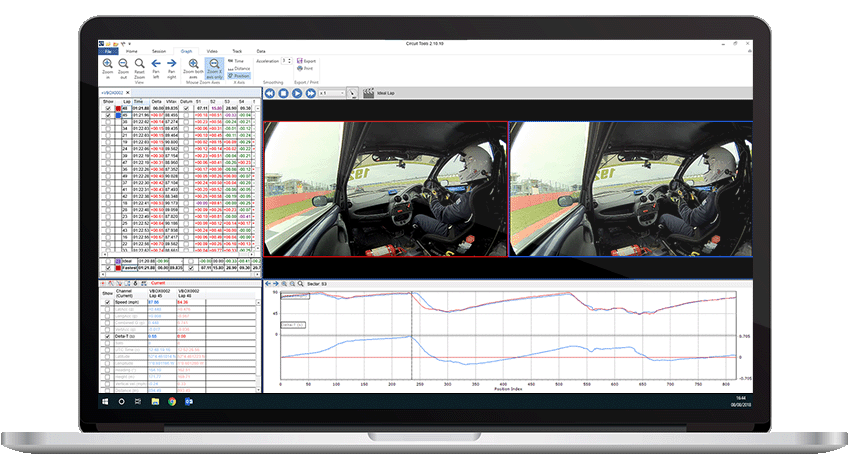

Powerful Analysis Software

Circuit Tools analysis software is aimed at drivers and is quick and simple to use. The software is designed to automate many tasks and present a driver with the information required to improve lap times.

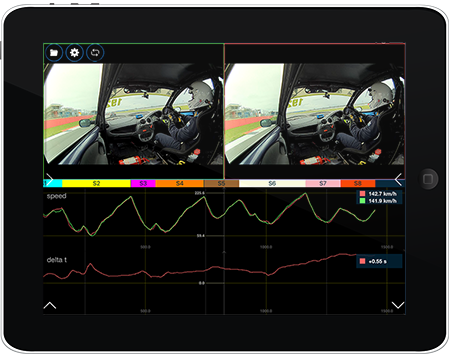

Circuit Tools is now compatible with Windows, macOS and iOS devices.

Would you like to try Circuit Tools at home?
Watch this video and download the accompanying video and data files for replay in Circuit Tools.

Fastest Lap Filter

This feature is unique to Circuit Tools

The fastest lap from your latest session is automatically chosen and displayed on the graph window. The video is moved to the start of this lap.

You can compare runs from this session, or from different days, drivers or sessions simply by importing them and clicking on the relevant lap time shown in the session window.

Logged Channels

The data window displays the values of the channels which have been logged at the position of the graph cursor. By default, Speed and Delta-T are displayed.

Side By Side Video

Watch the data-synchronised 1080p video side by side in slow motion to see the lines taken by each driver. You can move the video one sample at a time with a simple key combination.

Delta-Time Trace

Time difference or 'Delta-T' is a very useful channel that shows the lap time difference between two different laps, e.g. your last vs. your fastest lap or your best vs. another drivers lap. Use this to pin-point areas for improvement.

Add-ons and Accessories

RLVBDSP05-H2 / RLVBDSP06-H

The perfect addition to any video setup, allowing you to view lap times as you drive.

RLCABxxx

Various options such as the unterminated CAN interface cable (RLCAB159), OBDII CAN cable (RLCAB160), CAN splitter cable (RLCAB081H)

RLACS286 (included in Standard Package)
Solid aluminium body connected to a curved mounting plate. Bolted to the bar via supplied jubilee or worm drive hose clips.
RLCAB164 / RLCAB165

For connection to in-car 12 V auxiliary or cigar lighter sockets or, if absent, for direct connection to a 12 V and GND.
