Dodge Demon VBOX Video HD2

Posted in Video Loggers

dodge deman kitCongratulations on acquiring a Dodge Demon! On this page you will find everything you need to know about the special version of Racelogic’s VBOX Video HD2 (available online) – the most advanced GPS video data logger available, specially configured for Dodge Demon customers.

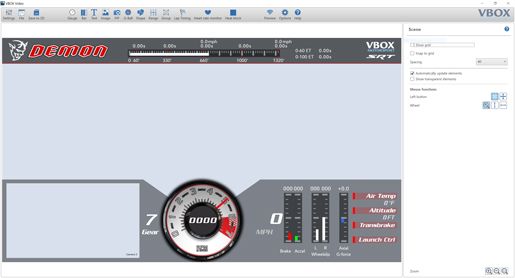

As a Demon owner, you have access to a custom-made graphical overlay scene not available to anyone else. The Demon-specific HD2 is supplied with a special pre-loaded scene designed specifically for the vehicle, displaying readouts for drag strip timing, brake and accel channels, wheel slip, and launch control parameters.

Racelogic worked with the SRT team to develop a connection to the Demon’s onboard systems that is not available on a standard VBOX, or third-party data loggers. You will be able to take advantage of the video and data that you record, to get the very best out of your car.

Demon Scene VBVideoSetup



Dodge Demon Scene Files

If you want to change your pre-loaded quarter mile scene to a half or full mile scene, just download the relevant scene file (.VVHSN) from the table below and upload it into the VBOX Video.

Step-by-step instructions on how to upload a scene can be found here.

Filename Size Date
Demon 4.0 Half-mile.VVHSN 1.52 MB 08-05-2018
Demon 4.0 Mile.VVHSN 1.52 MB 08-05-2018
Demon 4.0 Qtr Mile.VVHSN 1.52 MB 08-05-2018

Also included is a custom clamp for mounting to the harness bar, along with a personalised ID badge and branded carry-case. Take a look at this video recorded from the strip to get a feel of the capabilities of the VBOX Video HD2.

How to load a new scene file

  • 1) Save the relevant scene file an SD card.
  • 2) Power up the VBOX Video HD2 unit with cameras connected.
  • 3) Load the SD card into the front panel - the OK LED will flash green fast as the scene is loaded
  • 4) Wait for the double beep which indicates that the upgrade is complete - the OK LED will change to solid green.
