VBOX Video HD1

Race-proven video and data logging in one compact, plug-and-play camera. The most accessible VBOX Video product we have ever made.

  • Records automatically — never miss a session
  • Live data overlay: speed, g-force, lap times
  • Circuit Tools 3 analysis software included free
  • The size of an action camera, 167 g — installed in minutes
  • Records automatically — never miss a session
  • Live data overlay: speed, g-force, lap times
  • Circuit Tools 3 analysis software included free
  • The size of an action camera, 167 g — installed in minutes

Features

Two Camera Inputs

Never Miss a Session

Speed-triggered logging means HD1 starts recording automatically when you move and stops when you do. No missed sessions, no hours of meaningless footage. A configurable pre-buffer of up to 30 seconds ensures everything is captured, right from the race start.

Built for Motorsport

Not an action camera adapted for the track — a video data logger designed for it. Vehicle-powered, rated from −20°C to +60°C, reinforced body, replaceable toughened-glass lens, and a tether point to keep you safe and scrutineering-compliant.

Graphic Overlay

Live Data Overlay

Speed, g-force, lap times and track map, embedded into your 1080p video and synced frame by frame – plus throttle, brake pressure, gear, temps, and any other ECU or dashboard data you want. Fully customisable scenes, or ready-made layouts if you just want to plug in and drive.

CAN Bus Input

Circuit Tools 3 – Included Free

The data to find time yourself. Compare laps, see exactly where you brake, turn in and get back on the power –rated by users as the most intuitive circuit analysis software available. No subscription. No paywall.

Plug and Play

One unit, one cable. Camera, GNSS antenna and recorder are all integrated – mount it, power it, drive. Roll cage mount included in the box.

Set Up From Your Phone

Frame your shot from the driver's seat. The VBOX Video app connects over Wi-Fi for live camera preview, orientation fine-tuning and field of view setup.

Three Fields of View

Swap between Narrow (66°), Normal (92°) and Wide (132°) modes – choose the framing that suits your car, from single-seater to full-cabin saloon, without moving the camera.

Power Backup

One Camera. Two CAN Buses.

HD1 logs CAN messages across two isolated CAN buses, supporting both CAN 2.0 and CAN FD. Open the session in Circuit Tools 3 and see exactly what happened – was that two-tenths gain a braking point, an apex, or a throttle application?

Predictive Lap Timing

Add the Racelogic OLED display and see live delta to your best lap, updated in real time, accurate to 0.01 s.

Track Database with Auto Track Map

HD1 recognises the circuit and loads start/finish lines and track maps automatically.
HDMI Option

Stream It Live

HDMI output sends real-time video, audio, and overlay graphics straight to a monitor, recorder, or streaming device. No other video and data logging system at this price point offers HDMI output, making it easy to get your footage beyond your own laptop.

Latest-Generation Recording

H.265 (HEVC) encoding with dynamic bit rate delivers outstanding 1080p quality with efficient storage – around 8.5 GB per hour, tested with cards up to 512 GB.

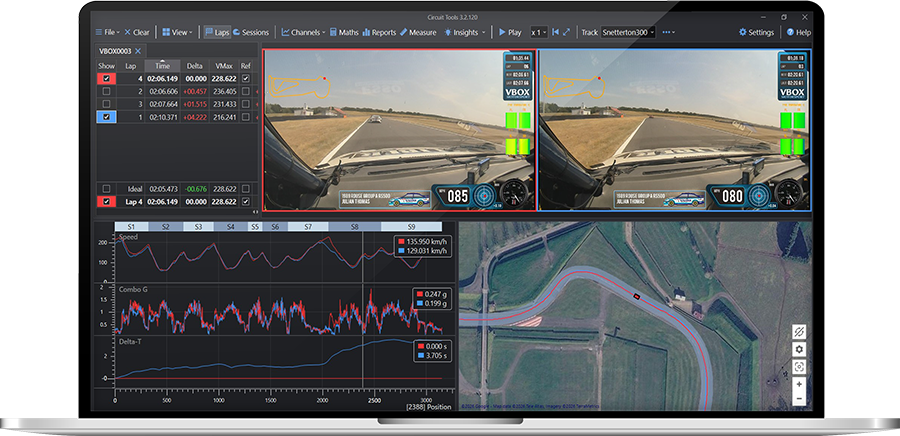

Circuit Tools 3. Free. Always

Circuit Tools has been the industry standard driver analysis software for over a decade. HD1 owners get full access from day one, and all future updates are included.

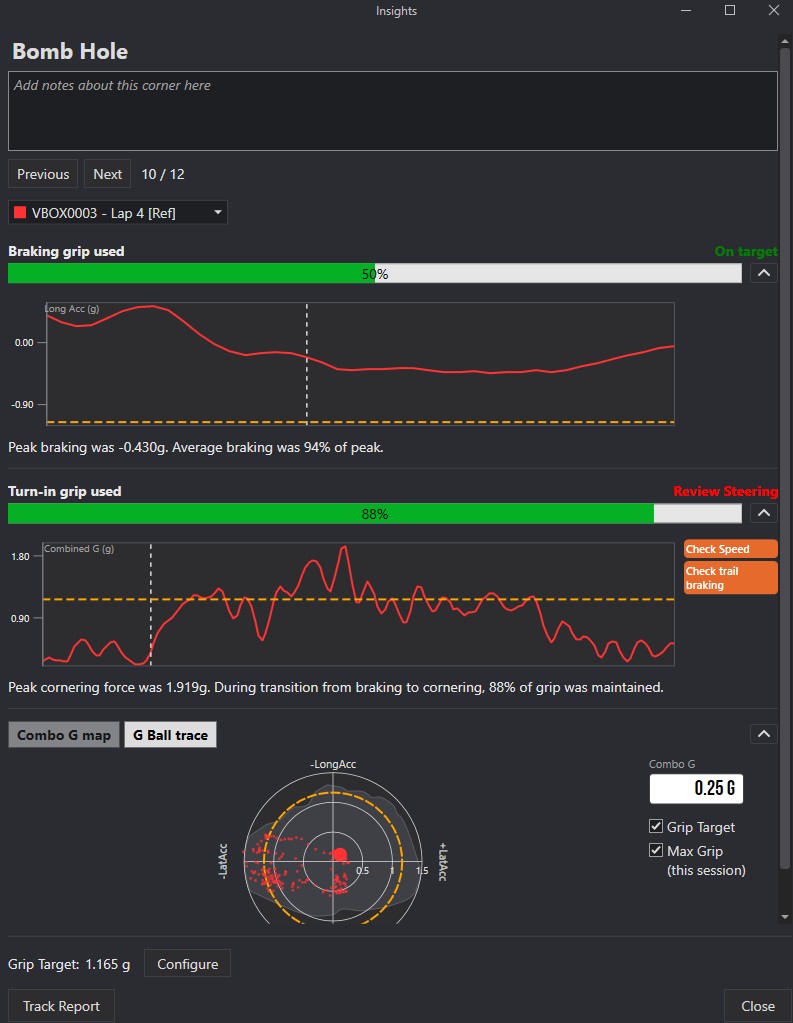

Video sync, sector-by-sector comparison, automated lap analysis, and the new Insights feature help you find those last tenths. It's powerful enough to be used in professional motorsport, but designed to be immediately useful to anyone who wants to improve – regardless of how much time they've spent with data before. It really is The Quickest Way To Go Faster.

Does that CT3 image apply to HD1?

Fastest Lap Filter

This feature is unique to Circuit Tools

The fastest lap from your latest session is automatically chosen and displayed on the graph window. The video is moved to the start of this lap.

You can compare runs from this session, or from different days, drivers or sessions simply by importing them and clicking on the relevant lap time shown in the session window.

Logged Channels

The data window displays the values of the channels which have been logged at the position of the graph cursor. By default, Speed and Delta-T are displayed.

Side By Side Video

Watch the data-synchronised 1080p video side by side in slow motion to see the lines taken by each driver. You can move the video one sample at a time with a simple key combination.

Auto Track Map and Position

(Within the AiM dash overlay)
The software automatically detects the country, circuit and track configuration from a database of over 600 circuits and uses the start/finish line information to separate the laps contained in your recorded file. It also shows your position on track as you go through the data.

Delta-Time Trace

Time difference or 'Delta-T' is a very useful channel that shows the lap time difference between two different laps, e.g. your last vs. your fastest lap or your best vs. another drivers lap. Use this to pin-point areas for improvement.

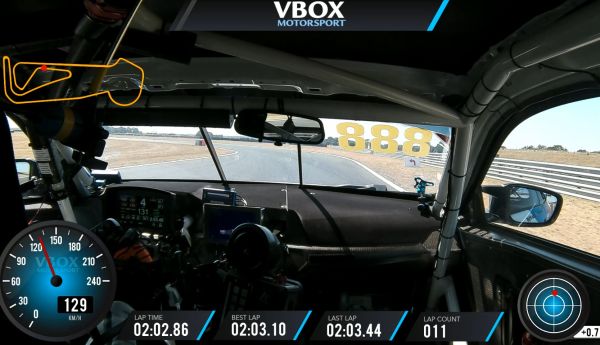

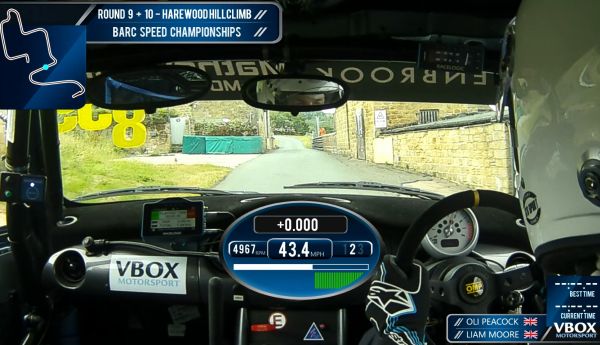

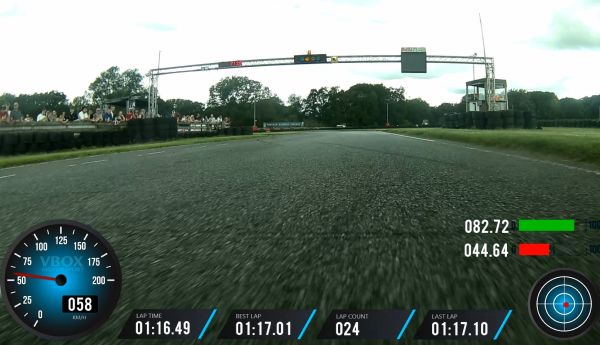

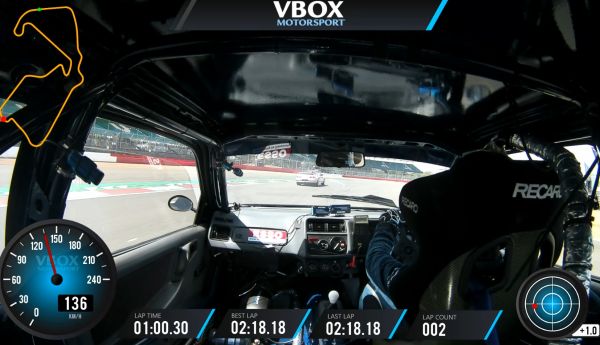

Real-time Graphic Overlay

RACELOGIC's range of in-car camera systems are fully synchronised and embed a real-time graphical overlay on your video, allowing you to instantly analyse your performance and pinpoint areas for improvement.

The overlays can display speed, track position, lap times, and other crucial metrics, which are invaluable for drivers seeking to improve performance or teams needing detailed post-race analytics.

Screen elements:

Track map - Dedicated Porsche Carrera Cup dash element with speed, lap times, brake and throttle gauges - Picture-in-picture

Screen elements:

Track map - Tyre temperature heat maps - Lap timing - Brake & throttle gauges - Speedometer - Rev meter - Picture-in-picture

Screen elements:

Track map - Picture-in-picture - Logo - Lap times (fastest/last/current) - Speedometer - Rev meter

Screen elements:

Track map - Logo - Lap counter - Lap times - Picture-in-picture - Speed - G-force

Why HD1?

VS. OTHER VIDEO DATA LOGGERS

Simpler to set up. Certain to record.

HD1 is quicker to install and simpler to set up, and Circuit Tools 3 is consistently rated by users as more intuitive than the alternatives.

Above all: reliability. You should never leave the pit lane wondering whether your video and data will be there when you get back.

VS. AI COACHING SYSTEMS

Coaching makes you consistent. Data makes you faster.

AI based systems tell you to repeat your previous best — but your previous best isn't the limit.

HD1 with Circuit Tools 3 gives you the actual data: braking points, apex speeds, throttle traces, lap against lap. You see where the time is, understand why, and go find it.

VS. ACTION CAMERAS

It knows it's on a race track.

Powered by the car, it records when you're on track and stops when you're not — no battery to charge, no record button to forget, no thermal shutdown in a hot cabin or open cockpit.

And your speed, g-force and lap times are in the video, not just the view.

More Features

Free Video Editing Software

25 Hz multi-constellation GNSS data logging

Library of free scene files

Internal microphone plus external mic/ intercom input



Live Preview for Camera Alignment

Compatible with Racelogic Micro and Mini Input Modules for analogue sensor channels

Bluetooth

CAN output (Racelogic message set) for driving external displays and dashboards

Optional external GNSS antenna (SMA)

FAT32 and exFAT SD card support, 32 GB card supplied

Add-ons and Accessories

RLVBDSP06-L/ RLVBDSP07-L
The perfect addition to any Video VBOX setup allowing you to view lap times as you drive. The OLED display includes our revolutionary predictive lap timing function.
RLACS286
Solid aluminium body connected to a curved mounting plate. Bolted to the bar via supplied jubilee or worm drive hose clips.
RLACS298

Livestream VBOX Video HD2 (HDMI) generated video from the track straight to the pits with a professional-grade wireless video encoder from LiveU Solo.

RLACS272 | RLACS314

Record the surface temperature of your tyres (RLACS272) or brake disks (RLACS314) with our  infrared temperature sensor kits. The data is synchronised with the video and can be displayed as a real-time graphic overlay on the footage.

RLACS228
Capture up to 11 OBD channels via this Bluetooth module which plugs into the vehicle's OBD port and can be configured through the HD2 setup software.
RLACS333-L

Useful if you cannot access the auxiliary power supply of your car or motorcycle, or if you want to avoid accidental data loss, which can happen when the unit is power cycled before the data has been transmitted.

RLACS227
Log your heart rate and display it on the video.
RLACS274
All accessories required for a second vehicle, allowing you to transfer the main unit between two vehicles.
RLACS237

Connect a logging switch to the HD2 to give you full control over the logging. The RLACS237 also allows you to log to a USB stick or solid state hard drive.
